MiiCraft Advance and Profession Series
The Advance and Profession series have the largest printing platform among MiiCraft product lines and working with a printable volume up to 255x235x190 mm (125µm pixel size) and 250x140x190 mm (65µm pixel size). This series are driven by high resolution LED light engine with Digi-optical technology for faster printing speed and beautiful printing details, make it perfect for individualized mass production and professional applications.
Features
The Profession series
- 4K Resolution: 3840 X 2160 pixels
- Up to 30um accuracy with a printable volume of 120x67x190 mm
- Open system: Compatible to diversified materials and 3rd parties
software
The Advance series
- Dual Full HD Resolution
- ”Square” printing area enable more productive printing volume
- Fast printing speed motivated by “Single Pixelized Entire Layer
Exposure” (>2cm/hr@100um)

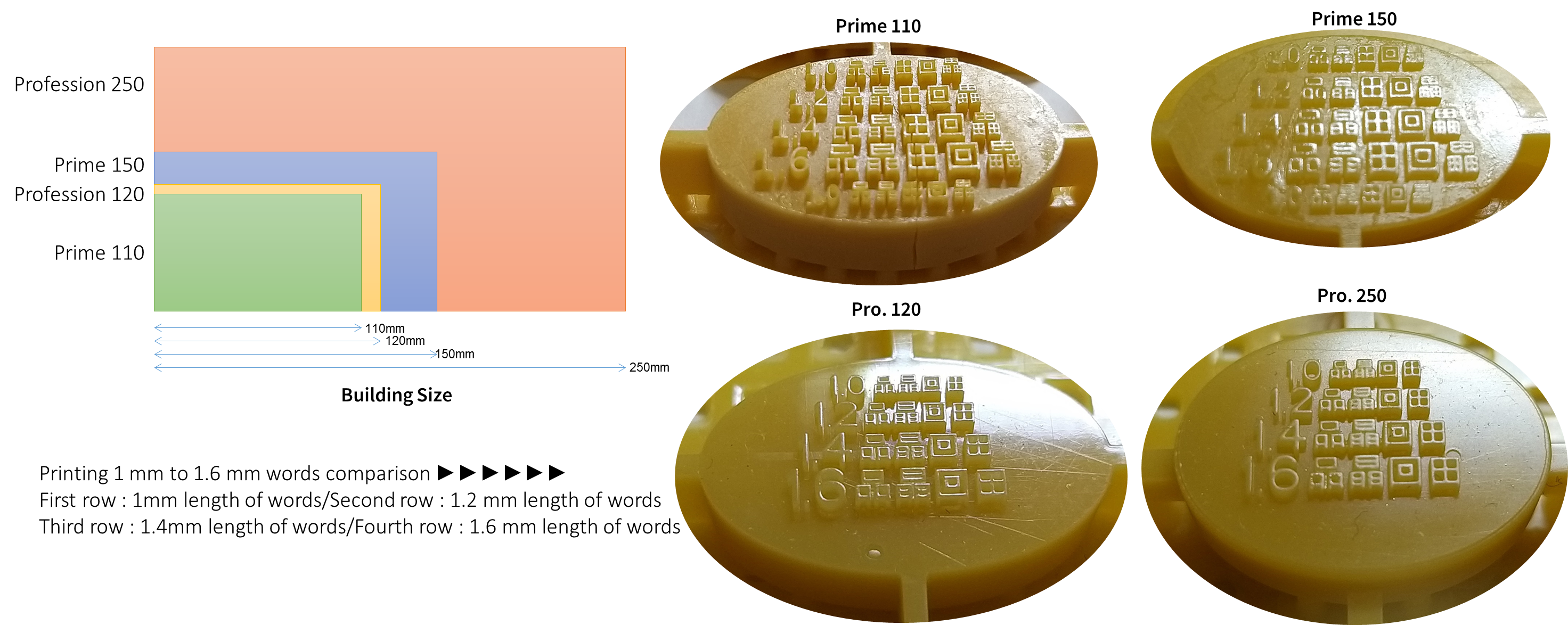

Real printing results reflect advantage of high resolution
Utilizes superior high resolution UV light engine to realize stunning printing details and smooth surface from small to big building size.
Specification
| MiiCraft Models | Profession 250 | Profession 120 |
|---|---|---|
| Building size (mm) | 250 x 140 x 190mm | 120 x 67 x 190mm |
| Z-Layer Resolution | 12.5 μm to 500 μm | 12.5 μm to 500 μm |
| XY Resolution | 65 um | 30 um |
| Wavelength (LED) | 405/385nm | 405/385nm |
| I/O (Connection) | Ethernet / USB | Ethernet / USB |
| User Interface | 7'' Touch Panel | 7'' Touch Panel |
POLYCURE post curing box (Optional)
An easy to use curing box for Advance/Profession series printer. The curing space can contain the largest printing size of Advance/Profession series printer. It offers three light frequencies for a wide variety of materials with durable high-performance LEDs. Turntable inside, ensure optimum curing quality.
- Curing space (DxH) : Turntable diameter 40cm, height 33cm
- Machine dimension (LxWxH) : 62x56x57cm
- Wavelength : 385-390 / 405-410 / 465-470 nm
- Voltage : 230 V/50-60 Hz
- Current consumption : 100 Watts
Applications
Dental, Jewelry, Hearing Aid, Medical Devices, Functional Parts, Manufacturing, Research.
| No. | Model | Resin | Printing parameter | Post-procedure | Print-out examples | |
|---|---|---|---|---|---|---|
| Jewelry | ||||||
| 1 | Pro. 250 | BV-013A | Thickness : 50um Speed : slow Curing time : 8.5s Gap : 0 Base curing : 30s Base Layer : 1 Buffer layer :4 | Wash :Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 60min |  | |
| 2 | Pro. 250 | BV-013A | Thickness : 50um Speed : slow Curing time : 8.5s Gap : 0 Base curing : 30s Base Layer : 1 Buffer layer :4 | Wash :Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 60min |  | |
| No. | Model | Resin | Printing parameter | Post-procedure | Print-out examples | |
|---|---|---|---|---|---|---|
| Manufacturing | ||||||
| 1 | Pro. 250Y | BV-022 | Thickness : 100um Speed : advanced Curing time : 1.8s Gap : 0 Base curing : 20s Base Layer : 1 Buffer layer :4 | Wash :Alcohol Post-Curing time : 10min |  | |
| 2 | Pro. 250Y | BASF | Thickness : 100um Speed : advanced Curing time : 5.5s Gap : 0 Base curing : 16s Base Layer : 1 Buffer layer :7 | Wash :Alcohol Post-Curing time : 3min |  | |
| No. | Model | Resin | Printing parameter | Post-procedure | Print-out examples | |
|---|---|---|---|---|---|---|
| Functional Parts | ||||||
| 1 | Adv. 205 | BV-023 | Thickness : 100um Speed : slow Curing time : 13.5s Gap : 0mm Base curing : 35s Base Layer : 1 Buffer layer : 6 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 600s |  | |
| 2 | Adv. 205 | BV-023 | Thickness : 100um Speed : slow Curing time : 13.5s Gap : 0mm Base curing : 35s Base Layer : 1 Buffer layer : 8 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 600s |  | |
| 3 | Adv. 205 | BV-023 | Thickness : 100um Speed : slow Curing time : 13.5s Gap : 0mm Base curing : 35s Base Layer : 1 Buffer layer : 10 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 600s |  | |
| 4 | Adv. 255 | BV-022 | Thickness : 50um Speed : normal Curing time : 2s Gap : 0 Base curing : 15s Base Layer : 1 Buffer layer : 4 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 600s |  | |
| 5 | Adv. 255 | BV-022 | Thickness : 50um Speed : normal Curing time : 2s Gap : 0 Base curing : 18s Base Layer : 1 Buffer layer : 4 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 600s |  | |
| 6 | Adv. 255 | BV-022 | Thickness : 100um Speed : normal Curing time : 3.5s Gap : 0 Base curing : 18s Base Layer : 1 Buffer layer : 4 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 900s |  | |
| 7 | Adv. 255 | BV-022 | Thickness : 100um Speed :normal Curing time : 3.7s Gap : 0 Base curing : 18s Base Layer : 1 Buffer layer : 4 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 900s |  | |
| 8 | Adv. 255 | BV-022 | Thickness : 100um Speed :normal Curing time : 3.4s Gap : 0 Base curing : 16s Base Layer : 1 Buffer layer : 4 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 600s |  | |
| 9 | Adv. 205 | BV-022 | Thickness : 100um Speed : slow Curing time : 2.5s Gap : 0 Base curing : 15s Base Layer : 1 Buffer layer : 4 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 600s |  | |
| 10 | Adv. 205 | BV-022 | Thickness : 100um Speed : slow Curing time : 2.5s Gap : 0 Base curing : 20s Base Layer : 1 Buffer layer : 8 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 600s |  | |
| 11 | Adv. 205 | BV-022 | Thickness : 100um Speed : slow Curing time : 2.5s Gap : 0 Base curing : 15s Base Layer : 1 Buffer layer : 6 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 900s |  | |
| 12 | Adv. 255 | BASF X004M | Thickness : 50um Speed : slow Curing time : 3.6s Gap : 0 Base curing : 18s Base Layer : 1 Buffer layer : 4 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 900s |  | |
| 13 | Adv. 255 | BASF X004M | Thickness : 50um Speed : slow Curing time : 3.6s Gap : 0 Base curing : 18s Base Layer : 1 Buffer layer : 4 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 1200s |  | |
| 14 | Adv. 205 | BASF X004M | Thickness : 50um Speed : slow Curing time : 3s Gap : 0 Base curing : 15s Base Layer : 1 Buffer layer : 10 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 600s |  | |
| 15 | Adv. 205 | BASF X004M | Thickness : 50um Speed : slow Curing time : 2.8s Gap : 0 Base curing : 15s Base Layer : 1 Buffer layer : 8 | Wash : Alcohol Post-Curing Energy : 30mw/cm2 Post-Curing time : 600s Total layers :440 Time : 2hr20 |  | |
| 16 | Adv. 255 | Graphy-EP200 | Thickness : 100um Speed : advanced Curing time : 4.3s Gap : 0 Base curing : 4.7s Base Layer : 2 Buffer layer : 8 | Wash : Alcohol Post-Curing Energy : 200mw/cm2 Post-Curing time : 10min each side Total layers :440 Time : 2hr20 |  | |
| No. | Model | Resin | Printing parameter | Post-procedure | Print-out examples | |
|---|---|---|---|---|---|---|
| Others | ||||||
| 1 | Pro. 250 | BV-023A | Thickness : 100um Speed : advanced Curing time : 11.2s Gap : 0mm Base curing : 25s Base Layer : 6 Buffer layer : 6 | Wash : Alcohol Post-Curing Energy : 400mw/cm2 Post-Curing time : 15min |  | |
